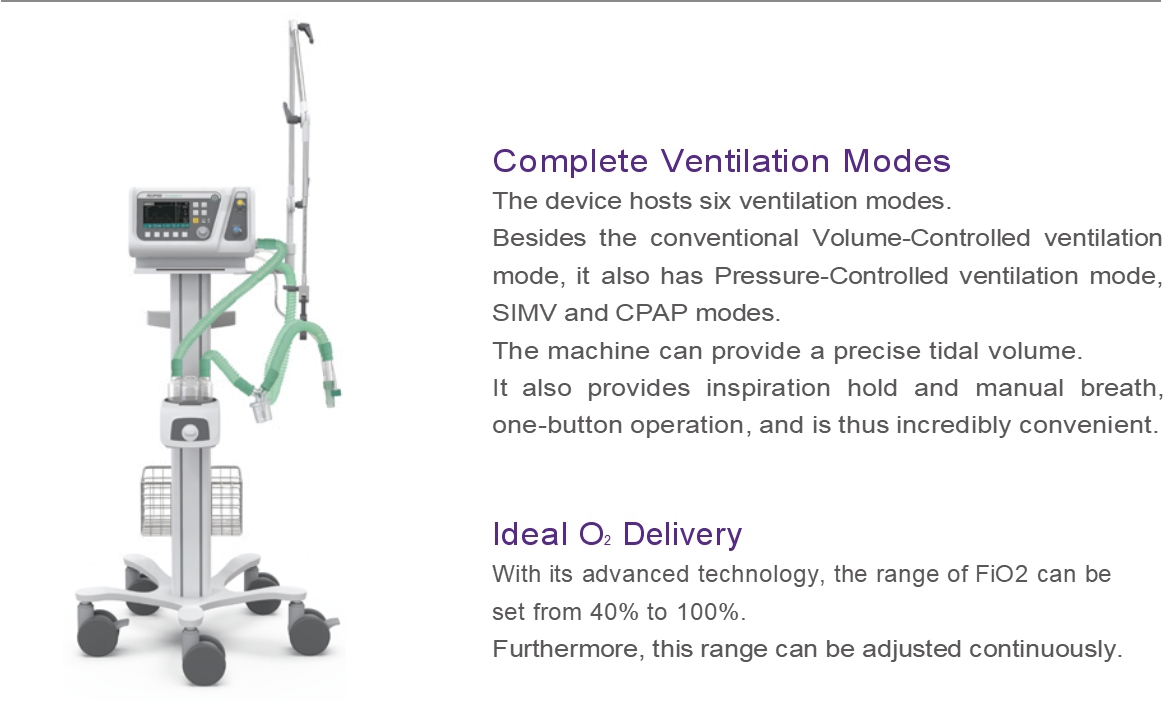

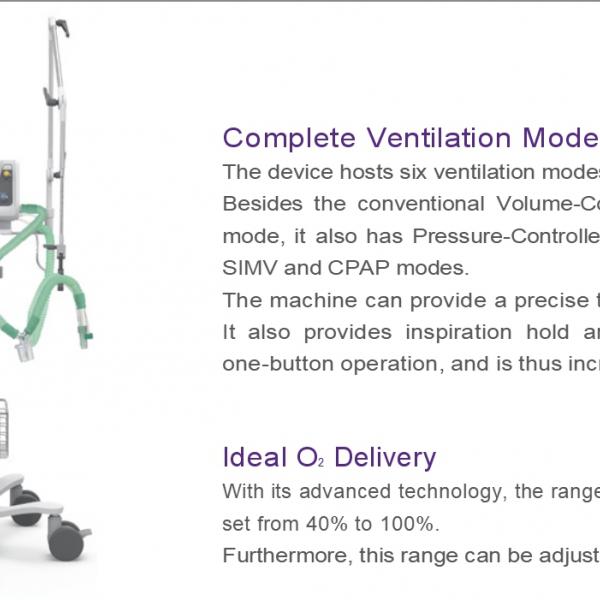

Complete Ventilation Modes
The device hosts six ventilation modes.
Besides the conventional Volume-Controlled ventilation mode, it also has Pressure-Controlled ventilation mode, SIMV and CPAP modes.
The machine can provide a precise tidal volume.
It also provides inspiration hold and manual breath, one-button operation, and is thus incredibly convenient.
Ideal O2 Delivery
With its advanced technology, the range of FiO2 can be set from 40% to 100%.
Furthermore, this range can be adjusted continuously.
Clinical Enhancements
• Manual breath
• Inspiratory hold
• Alarm silence
• Pre-use test
Working Scenarios
• Ward, Emergency Department， Sub-acute Care Unit

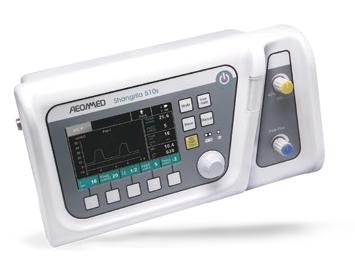

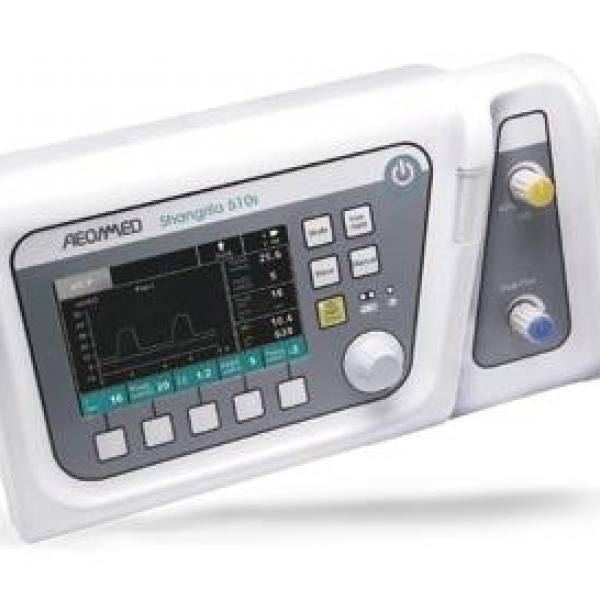

Parameter of 510S
1. First aid transfer ventilator for adults and children
2. Driving mode: pneumatic electric control
3. Control mode: capacity control, pressure control, time switching
4. Display mode: ≥5 inches color display screen
5. Power supply: AC100V ~ 240V, 50Hz/60Hz; DC12V; Built-in battery (battery life ≥4.5 hours
6. With altitude compensation function
7. With function of backup ventilation after asphyxiation
8. Manual ventilation and inhalation retention
9. At least the following modes of ventilation should be available: VCV, PCV, SIGH, SIMV-V, SIMV-P, SPONT/PSV, CPAP, Manual
10. Parameter setting:
10.1 tidal volume setting range: 0-1800ml continuously adjustable
★10.2 respiratory rate setting range: 1~110bpm.
★ 10.3 can set the breath-holding time: 0~5s
10.4 pressure control level: 5 ~ 50cmH2O
10.5 positive end-expiratory pressure: 0~30cmH2O
★ 10.6 two kinds of trigger: velocity trigger and pressure trigger
10.7 pressure trigger sensitivity: -20cmh2o ~ 0cmH2O
10.8 Flow trigger sensitivity: 2~30L/min
★10.9. Oxygen concentration: 40%~100% continuously adjustable,
11. Monitoring: tidal volume, minute ventilation volume, peak pressure, total breathing rate, oxygen concentration, positive pressure at the end of expiratory period, trigger display, ac power supply indicator, dc power supply indicator, charging indicator, battery power monitoring
12. Respiratory waveform monitoring: pressure-time waveform, flow-time waveform
13. Alarm: upper limit of airway pressure, lower limit of airway pressure, upper limit of minute ventilation volume, lower limit of alarm, continuous high airway pressure alarm, suffocation, ac power outage, low battery, low air source pressure alarm, system failure alarm, etc
14. Various power supply methods: vehicle, adapter, internal battery, external standby battery

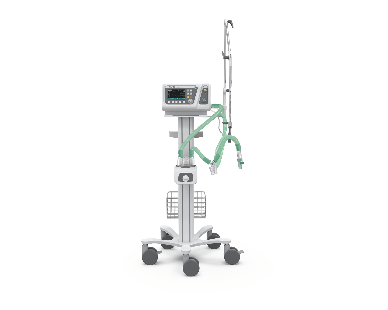

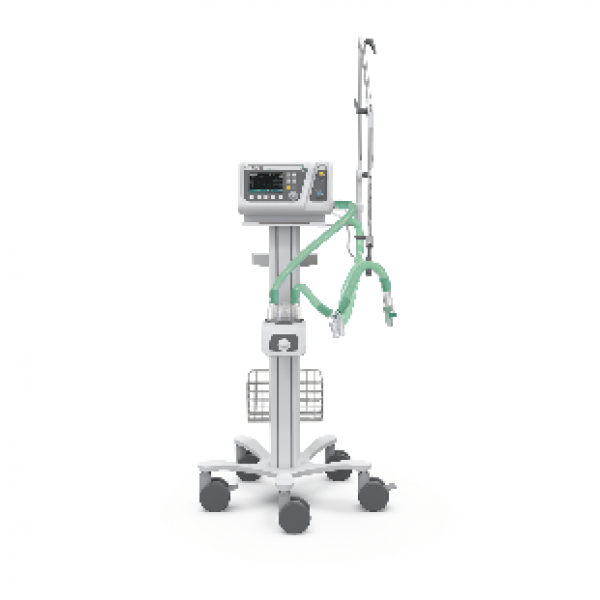

15. Various installation methods: vehicle-mounted, portable and box-mounted fixed installation methods, which meet the European Union EN1789 vehicle-mounted experimental standard
16. CE and CFDA certification
17. IPX4 waterproof grade
18. Complies with EN1789 ambulance vehicle standard
19. The air interface and breathing pipeline interface are on the side of the ventilator, which is convenient for medical personnel to observe and operate.
