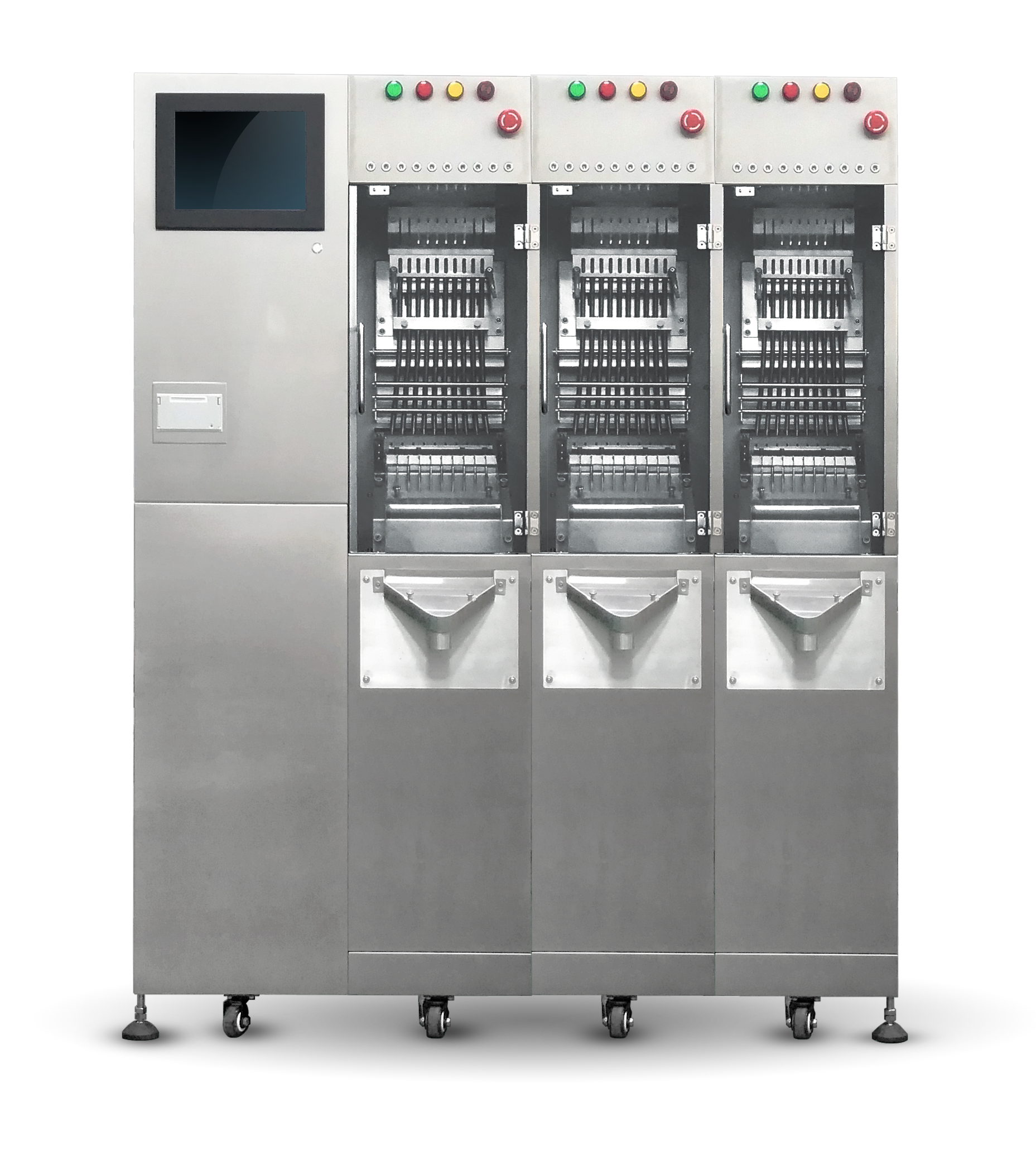

Capsule Checkweigher

Introduction:

Due to the effect of human, machine, material, technology and environment, a wide scope of capsule weight may occur during the production, some of them have already went beyond the weight range, these unqualified ones are considered to be “risk capsules”. how to deal with these risk capsules quickly is an urgent problem for the production and quality department. Especially when their numbers are large.

CMC series could clasify every capsule weight single by single with high precision. Capsules will be divided into qualified and unqualified section according to the standards set in advance and a report of date statistics will be printed out simultaneously. This machine could weigh the risk capsules one by one, even the capsule number is large, and separate the good and bad ones into different area. Pharmaceutical plants could benefit from this to lower their cost and improve the quality.

With its “unit extension structure” and “infinite parallel connection”, the classifying efficiency of this equipment could be increased highly. Because of this, CMC series could be connected to all kinds of capsule filling machines and it will detect every capsule weight in production. The quality management idea “Every capsule will be detected” could be realized with CMC Series.

Performance and Advantages:

1. High precision weighting sensor and DSP fast signal processing system used in the core part of the equipment enable accurate and rapid data measurement.

2. This equipment could classify: capsule sizes of 00#, 0#, 1#, 2#, 3#, 4#, 5#; all kinds of safety capsules; long tablet shaped like capsule. ( other shapes of tablets could use TMC series to detect their weight)

3. Mold is constructed by overlapping blocks and lock-in structure, it could be disassembled immediately upon the changing of capsules size and installed just in the right position.

4. The machine uses “unit extension structure” and “infinite parallel connection” have greatly improved the work efficiency. It’s just for you to choose the equipment size according to your product condition.

5. This equipment could identifying the qualified and unqualified capsule upon a specific range set in advance. The light flash tells when it detects the unqualified.

6. This equipment can make a comprehensive data statistics and print them out.

7. Product information could be saved automatically and permanently and you could check in as much as you want.

8. Touch screen and a friendly man-machine interface make the operation more simple and clear.

Technical Parameters:
