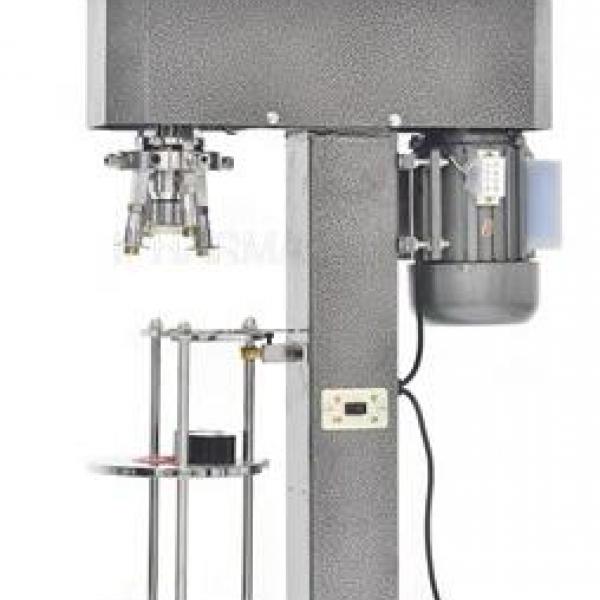

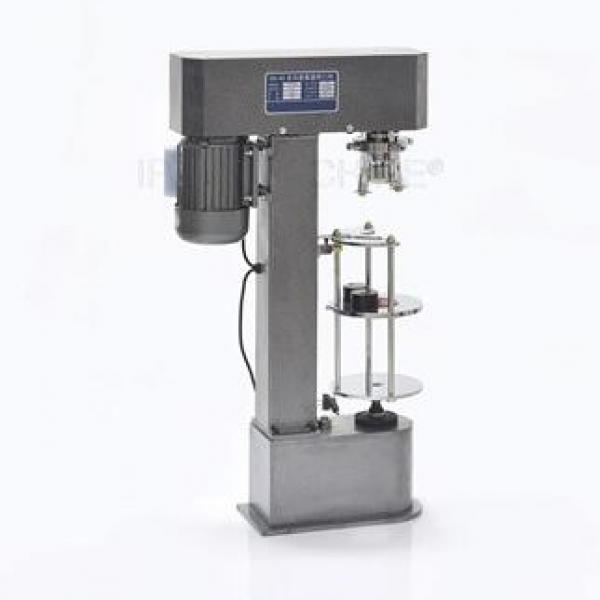

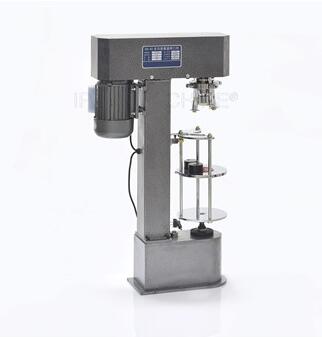

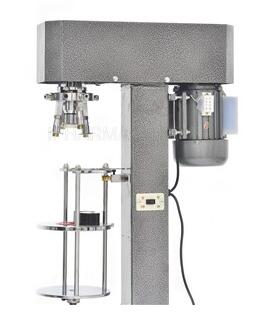

Single Head Automatic ROPP Capper SDK-50
Introduction

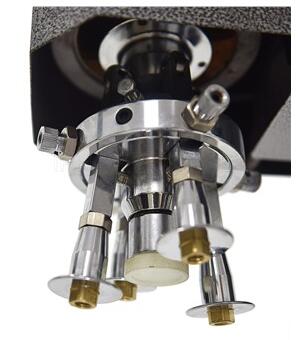

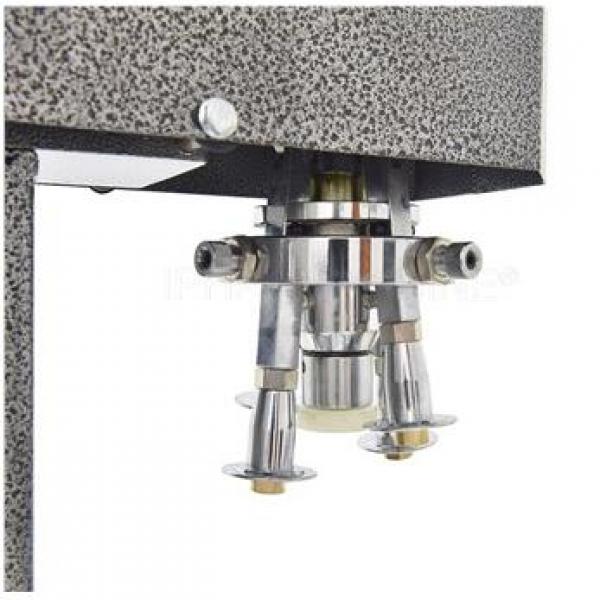

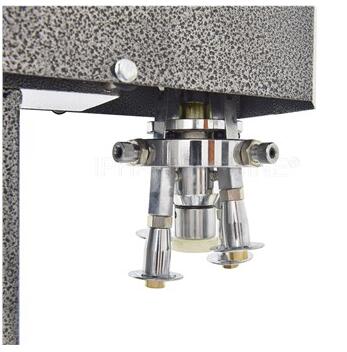

This capping machine is widely use for Liquor, Medical, Pharmaceuticals, Beverages, Food, Agrochemicals, Edible oil, Lube oil and misc. industries. Heads with low tension springs can be fitted to seal PET / PVC / HDPE bottle. Capping heads can be adjusted for any shape and sizes bottles. Capping heads with two threading and two sealing rollers for different diameters and heights (standard semi-deep drawn, deep drawn, extra deep drawn) of caps.

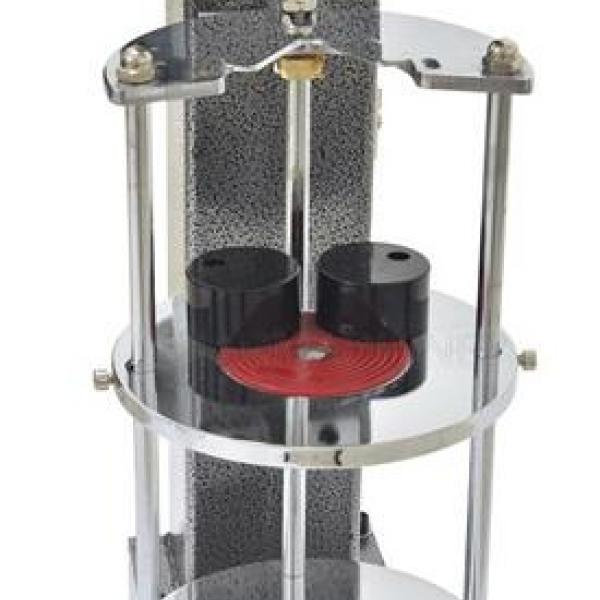

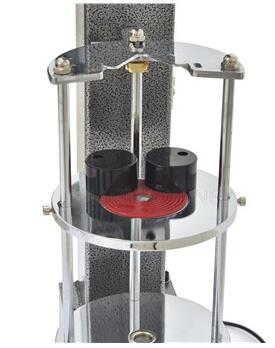

The sealing & threading pressure can be easily adjusted. Centering guides fitted in the heads ensure that bottle is centered properly before capping to ensure precise and accurate capping.
Specifications
Model | SDK-50 |
Capping Diameter | 20-40mm |
Capping Height | 100-330mm |
Output (tablets/h) | Up to 25-30 CPM |
Voltage | 220V/50Hz;110V/60HZ |
Power | 370W |
Net Weight | 65KG |
Measurement | 65*20*92cm |
Remark
Suitable for ROPP caps
Handles caps sizes 20-40mm
Adjustable height; Adjustable capping head rise and fall speed, dwell time
Handles bottle heights from 350mm
Compact, easy to operate, low maintenance
Bottle Diameter 120mm
