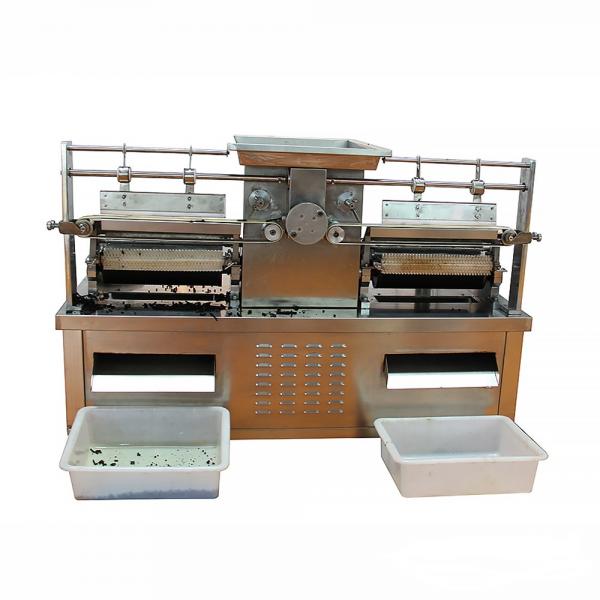

ZWJ Pill Making Machine
Introductions:
ZWJ is new automatic and efficient water pill making machine is my company based on market demand, summarize our many years of production experience and the views of users of traditional Chinese medicine pill machine, the latest research and development for the production of various mixed into a paste-like lump of soft plastic material (organic or inorganic material), made of "spherical balls" of large-scale machinery and equipment of the ball. The machine also can produce the production of spherical pill, pill shaped rotating body, such as an oval pill, pill-shaped drum, flat drum-shaped pill, cylindrical rod balls of various sizes of pellets, for users to choose.
How it works:
Mixing, refining homogeneous lump spice paste into a pellet hopper by pressing flap at promoting the role of drug strip material extruded from both sides of the mouth. When the drug reaches a certain length of strip, cut by an automatic cutter, and then by the distributor at a rate of once per second drug rub strip into the roll. Hob position and the belt tension can be individually adjusted by means of fine-tuning device, change the pellet size and weight, easy to operate.
Features:
1. Reasonable structure, stable performance, low noise, simple operation, high degree of automation. Maintenance and cleaning easy, high production efficiency, machine made of stainless steel, meet the GMP certification requirements.
2, pill cutter wheels made of special materials, handling light, non-polluting, long life; cutter wheel through a special process, non-stick agents, no alcohol, dusting or drip, pills made out of light, bright, round .
3, made out of pills forming a uniform size, a small pill weight difference, the finished 98, disintegration good, in line with the national pharmacopoeia standards
Technical Parameters:
Model | ZWJ |
Ball Diameter | 3-12 mm |
Production Capacity | 20-120 Kg/h |
Power | 380V,50Hz,4.75 Kw |
Packing Size | 1700*820*1520 mm |
Packing Weight | 900 Kg |
