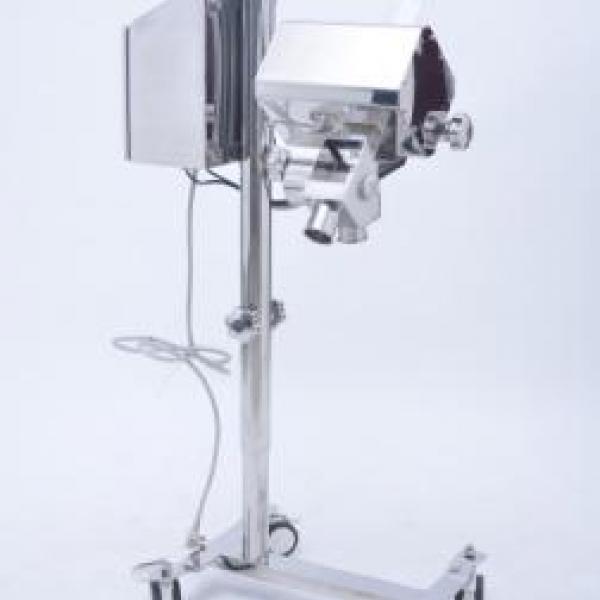

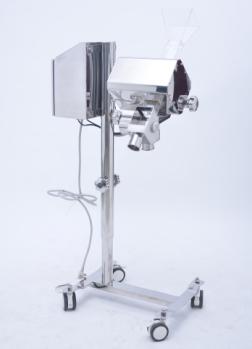

Pharmaceutical metal detector
Metal separator for the inspection of tablets and capsules
Basic Information:
German technology. Master control board is exported from German, High scanning sensitivity, High reliability.
Metal separator is used for the inspection of tablets and capsules. It detects all magnetic and non-magnetic metal contaminations (steel, stainless steel, aluminium) and eliminates.
Matching with tablets press machine, capsule filling machine and used alone.
Advantages:
Waterproof design, easy to clean.
The special structural design can effectively avoid vibration ,noise and the external factors such as product effect.;
Separation unit and product-contacting metal parts completely made of stainless steel 1.4301.
Feature:
Auto-learn function with product compensation for optimal adaptation to the intrinsic conductivity of the product to be inspected.
Multi-product memory.
Rapid de-contamination , To reduce the material loss, Do not interfere with the normal manufacturing process.
Detection object: tablet, capsule, particle.
Scanning sensitivity: Fe≥0.2mm，SUS≥0.4mm.
Rejection method: eliminator removes metal impurities automatically.
The whole design conformity with GMP and CE standard, also the eleventh part of 21CFR.
Protection rating：IP65.
Typical Application Areas：Food industry, Pharmaceutical industry.
Technical Data
Type | Maximum scanning sensitivity (mm) | Maximum throughput (L/h) | ||
Fe(mm) | SUS（mm） | NoFe（mm） | ||
T50/20 | 0.2 | 0.4 | 0.25 | 350 000 |
T68/18 | 0.2 | 0.4 | 0.25 | 460 000 |
T80/20 | 0.25 | 0.5 | 0.3 | 650 000 |
