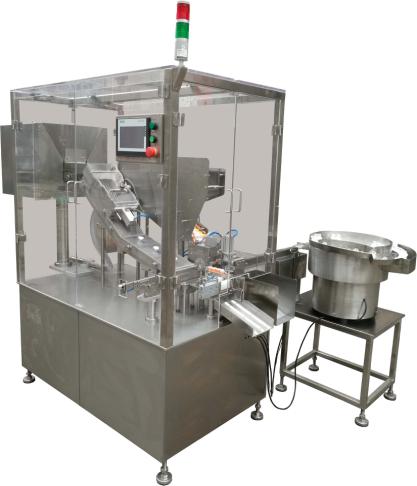

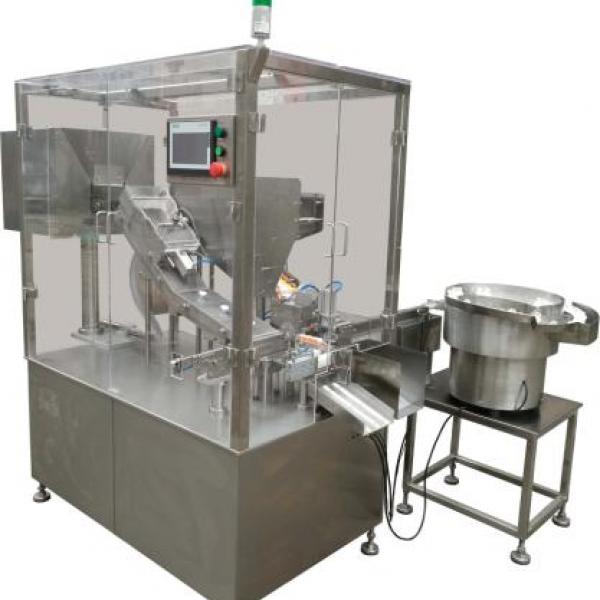

SPP-40 Automatic Tube Bottle Packing Machine

SPP-40 Automatic Tube Bottle Packing Machine

Instructions:

SPP-40 Automatic Tube Bottle Packing Machine for large and thin single row of stacked drums in the order of the package, the device all use programmable controller centralized control, optical fiber, photoelectric detection, etc. Stable, reliable, can be automatically run. When there is no film, missing bottles, missing, etc., can alarm and automatically shut down. Equipment and tablet contact with 304 or 316 high-quality stainless steel materials, in full compliance with GMP requirements. Its the pharmaceutical factory, health care products factory, food factory effervescent packaging and similar packaging of the best equipment.

Features:

1, send cover vibration plate: manually put the lid into the oscillation disc, the oscillation will automatically set the direction of the lid into the fixed gland position.

2, send the film part: artificial into the storage bucket, the machine automatically send the film to the tube part.

3, send the film into the bottle part: When the detection of a bottle, the machine will automatically push the tablet into the bottle.

4, the bottle part: artificial bottle in one direction into the storage bucket, through the pendulum, the bottle will be automatically arranged in order into the loading position.

5, gland part: When a bottle is detected and fitted with a tablet, the gland part will automatically press the lid into the bottle. No sheet, less pieces do not gland, and automatically remove the bottle without gland.

6, the electronic control part: the entire operation of the equipment by the PLC control, and in accordance with the order of automatic implementation. When a package is missing, it will automatically alarm and stop.

Technical Parameters:
