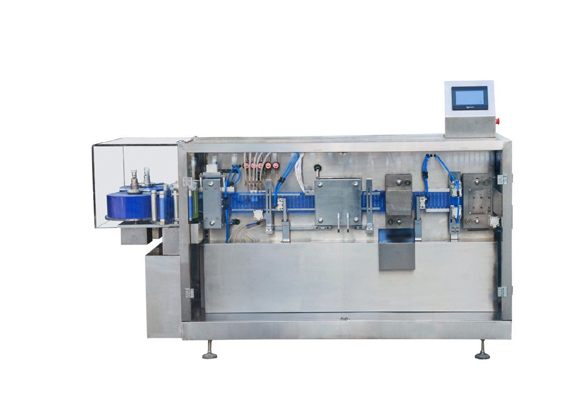

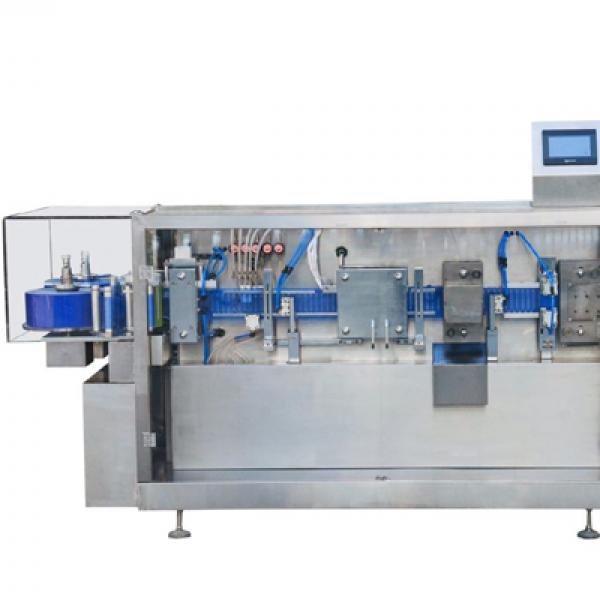

DG-118 Automatic Liquid Filling Machine
Introductions:
1.PLC control, step-less frequency conversion adjustment.
2.paper, plastic molding, filling, batch number, cut the tail, cutting, etc. 7 location by the program automatically.
3.man-machine interface device, the operation is simple and clear.
4.filling head does not drip, no bubble, no overflow.
5.related parts in contact with the liquid are made of high quality stainless steel material, conform to GMP standard.
6.main pneumatic components, electrical appliances imported accessories.
7.electronic peristaltic pump control filling system and mechanical filling two kinds, accurate measurement error is small.
Application:
Oral liquid, liquid, pesticide, perfume, cigarette oil, cosmetics and fruit pulps, etc.
Technical Parameters:
Model | DG-118 |
Max. Forming Depth | 12 mm |
Cutting Frequency | 0-25 times |
Packing Material | PET/PE, PVC/PE (0.2-0.4)×120 mm |
Filling Capacity | 1-50 ml |
Power | 380V,50Hz,6Kw |
Packing Size | 2320×850 ×1470 mm |
Packing Weight | 1000 Kg |
