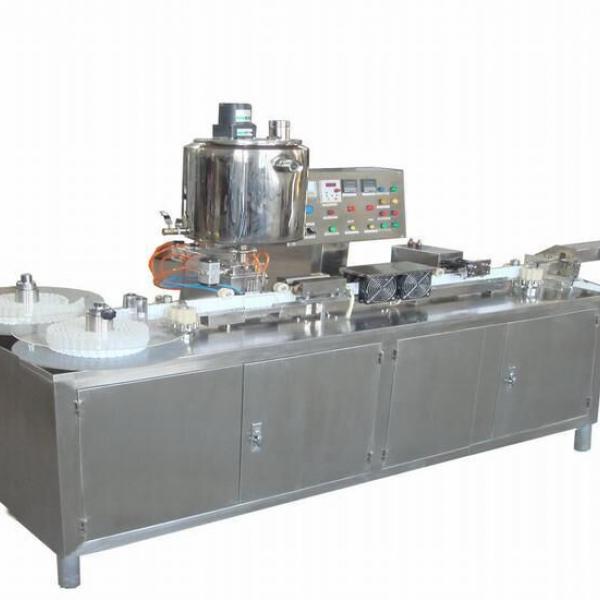

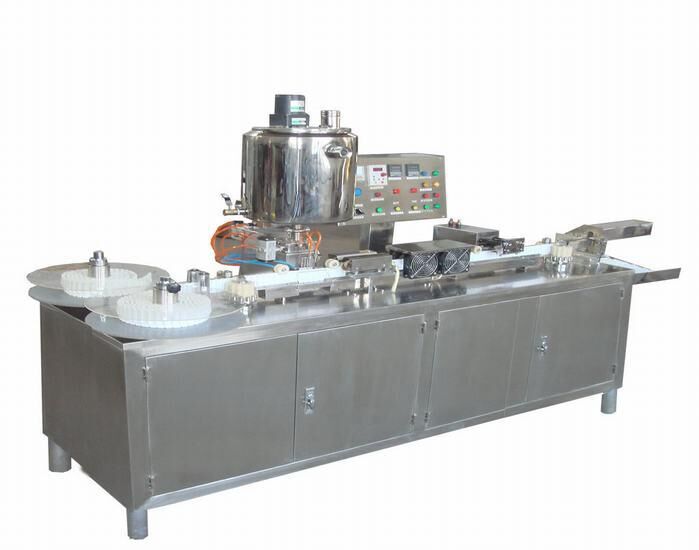

SGF Suppository Filling, Sealing and Cutting Machine
Introduction and Features:
The equipment adopts finished finalize suppositories shell, it can automatic perfusion suppositories shell, sealing, reshaping, cooling and cutting, and it is suitable for various small and medium-sized pharmaceutical companies and hospitals use.
This machine practical base materials: synthetic fatty acid glyceride, glycerin gelatin, TCM gelatin, polyethylene glycol (peg), solid embellish grease, etc.
Main Technical Parameters:
Model | SGF |
Capacity | 2500-5000 granule/h |
Filling dose | 0.5g-6g |
Filling error | ±1.5% |
Heating cylinder | 30 litre |
Temperature control | 25℃-65℃ |
Air consumption | 0.3m3 /min 0.6Mpa |

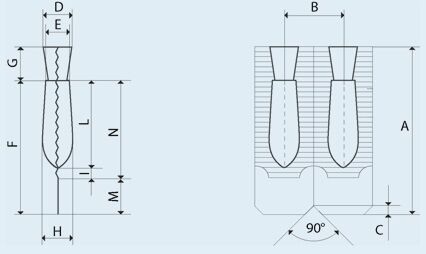

Suppository belt | bullet, torpedo, buds, duckbill (vagina and anus type) |
Total power | 2.8KW, 220V |
Overall dimension | 2100*750*1850mm |
Weight | 800kg |
