Instructions:

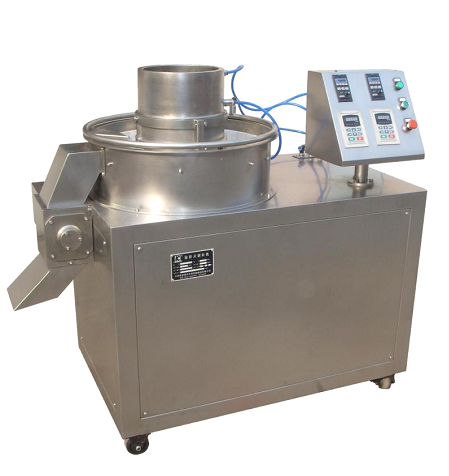

ZL Series Rotating
Granulator is an ideal equipment used in such trades as pharmaceutical,
foodstuff, irruptive dosage chemical, solid beverage and so on, especially for
the material with high viscosity. It can make the required granule from
agitated materials. Featuring high efficient granulated, beauty appearances of
the granules, automatic discharging, avoid the breakage of false discharging,
and this machine is suitable for nullah-operation. It is suitable for the chick
mono sodium glutamate factory.
Working principle:
ZL Series Rotating
Granulator adopts one pair of
rotating grinding blade to grind form damp material into column-shape granule
by stainless steel sieve cylinder which is provided to pelletize in next
process. The machine can obtain different size granule by changing the
stainless steel sieve.
All parts contacted with raw material in ZL Series Rotating Granulator are made of stainless steel. Its
appearance is beauty and taste and its structure is reasonable. Its efficiency
is high and the granule is beauty. Its discharge is automatic. Therefore it can
avoid the damaged conditions caused manual.
Technical
Parameters:
|
Model |
ZLB80 |
ZL250 |
ZL300 |
|
Production
Capacity |
(1-10) Kg/h |
(6-200) Kg/h |
(150-350) Kg/h |
|
Granule Size |
(0-130) mm |
Ф250 mm |
Ф300 mm |
|
Diameter |
(0.8-1.5) mm |
(0.8-2.5) mm |
(0.8-2.5) mm |
|
Power
|
220V/50Hz/0.2Kw |
220V/50Hz/3Kw |
220V/50Hz/4Kw |
|
Packing
Size |
370×320×570 mm |
720×520×1420 mm |
820×620×1420 mm |
|
Packing Weight |
20 Kg |
350 Kg |
400 Kg |
