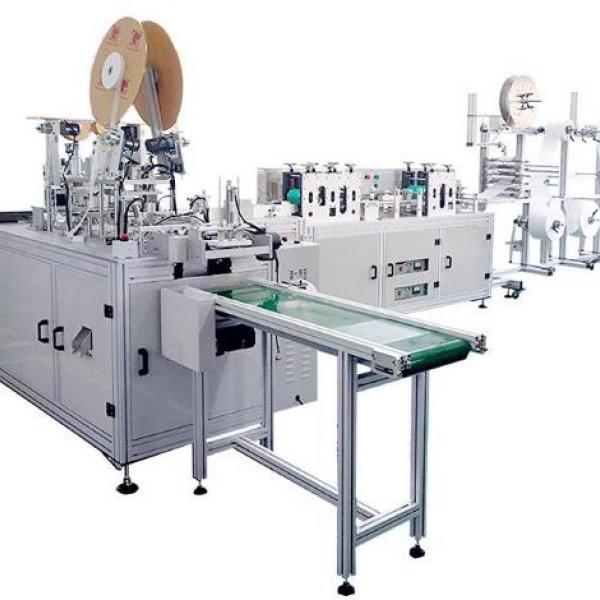

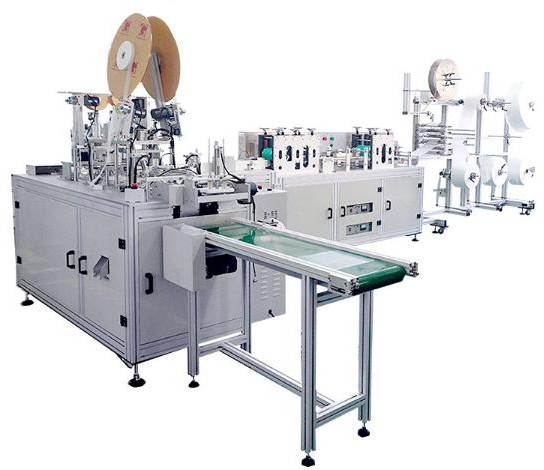

SPJ-1 Full Automatic Plane Face Mask Machine
（with 1 auto welding systems)
1. Production Capacity: one main machine + one auto welding systems: 30-80 pcs/min
2. Weight: 1200KG
3. Voltage：380V/220V, 50Hz
4. Power supply：（around ）12KW (actual consumption 6KW)
5. Air pressure：0.6-0.7Mpa
6. Frame materials: Aluminum alloy
7. Mode of Control: PLC
8. Detection Method: Photoelectric Detection
9. Thermal welding system：Ultrasonic
10. Qualified rate of production:≥98%(excluding raw material problems and operational reasons)
11. Defective rate:≤(excluding raw material problems and operational reasons)
12. Main Process:：
Material unwinding station：
Inner layer non-woven material mechanical material rack roll diameter: 800mm,
passive unwinding, machine stop when material splicing.
Middle layer non-woven material mechanical material rack, roll diameter: 800mm,
passive unwinding, machine stop when material splicing.
Outer layer non-woven material mechanical material rack, roll diameter: 600mm, passive unwinding, machine stop when material splicing.
Bridge of nose mechanical material rack, diameter : 600mm, passive unwinding.
Three layers folding unit
Side & end sealing unit
Final cutting unit
By pass
Mask sheet Conveyer
Bridge of nose mechanical material rack, diameter : 600mm, passive unwinding
Ear-loop Making unit
Ear-loop auto welding unit by Ultrasonic
Lining & conveyer
Mask conveyer
