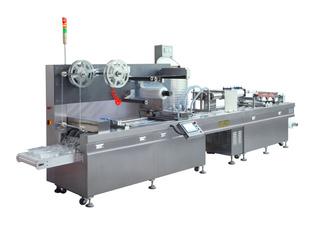

BD-420 Syringe Blister Packing Machine
1. Layout
1.Membrane 2.ThermoformingZone 3.LoadingZone 4.Feeding 5.OnFilm 6.SealingArea 7.Crosscutting 8.RipCutting
2. Usage Scope and Packaging Type
BD420 Syringe Blister Packing Machine is suitable for a variety of food, meat, medicine products, hardware components, medical devices and other seal packaging machine.
Soft Film Samples:
Features:
1. Widely used, can be flexible applied to variety of packaging
a.Tray Sealing Packaging b.Modified Atmosphere Packaging c.Blister Packaging d.Skin Packaging e.Flexible Soft Film Packaging
* High degree automation, reduce labor costs and increase productivity.
* Full automatic system of boxes and filling process, in order to avoid secondary pollution
on prefabricated boxes, but also reduce the cost of prefabricated boxes cost and storage
space.
* Modular design, easy used with other equipment, such as filling equipment, measuring
equipment,printers, labeling machine.
4. Main Features:
(1) Optical tracking, could making choice of color covering film or film for packaging, reduce cost, improve product quality.
(2) Using a combination mould, easy to replace, multi-purpose machine with cooling system.
(3) Can be packaged according to user requirements, selected with automatic coding system.
(4) Using a special clip-mouth chain, suitable for a variety thickness of soft film, subdural and epidural half stretch forming, special packaging.
(5) Make use of advanced cross-cutting, rip cutting system, easy to operation and replacement.
(6) With scrap recycling system, maintain environment hygiene.
(7) Aluminum alloy body to prevent rusting metal framework contaminated products.
(8) The machine is equipped with a remote control, consider the length of the fuselage can be anywhere in the machine to operate the machine, and enhance the safety operation of the machine.
(9) Set the stroke adjuster for more different specifications mould exchange.
(10) After the arch overall vacant station for easy replacement and maintenance mould.
Technical Parameters:
Model | BD420 |
Production Capacity | 24 000 pcs/h (1 ml Syringe) |
Max. Package Size | 400×390×60 mm |
Package Material | Sealing material: width 400 mm, thickness 0.05-0.7 mm Molding material: width 420 mm, thickness 0.05-0.5 mm (PE film) |
Air Consumption | ≥0.6MPa 0.3m3 |
Vacuum Degree | -0.10Mpa |
Power | 380V, 50Hz, 13KW |
Packing Size | 6500×1070×1700 mm |
Packing Weight | 2000 Kg |
