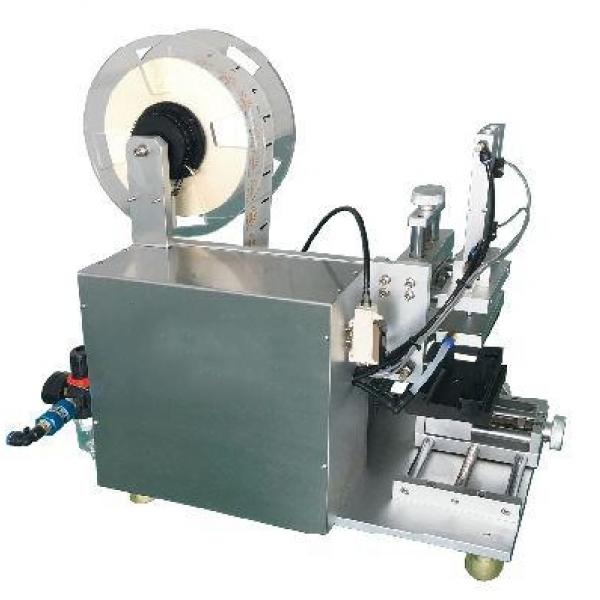

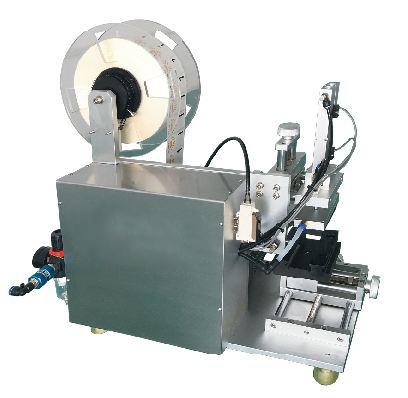

SZ-50 Semi Automatic Flat Labeling Machine
Application:
Sticking adhesive paper labels or Clear Labels to Bottles or Products from Top Suitable for Small Batch Labeling projects
Features:
Simple Manual Operation Labeler with a step pad
Labels blew and pumped on products with air cylinder
Flexible to work in any places
Photoelectric sensor to control the labeling on and off, Labeling accuracy is high
Made under GMP Standard
Special Designed for irregular shape products
Options Function for the Labeling Machine(Not included in the price)
Coder Printer to print batch number, production date, expiry date and so on on the label when labeling.
Special Sensor applied for transparent labels.
Customization as per customers' requirements.
Technical Parameters:
Below is the technical parameter for standard machine：
Production capacity: 600~1800pcs/h(related to product size)
Labeling precision: ±0.5-1mm(exclude product and label error)
Product size applicable: 25mm≤width≤100mm, 30mm≤ length≤200mm,
Label size applicable: 15mm≤width≤55mm, 15≤length≤80mm
Power supply: 220V 50Hz 0.7KW
Air supply:0.6MPA
Machine size: 650*350*600mm
Weight: 30KG
(The machine can be customized according to customer's special requirement.)
