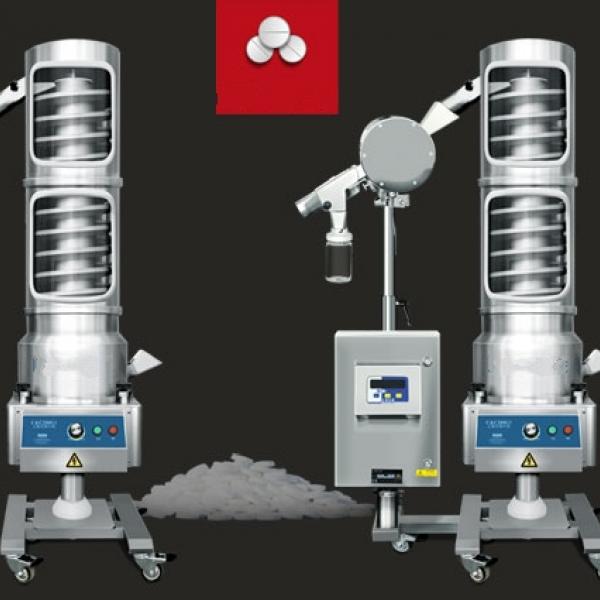

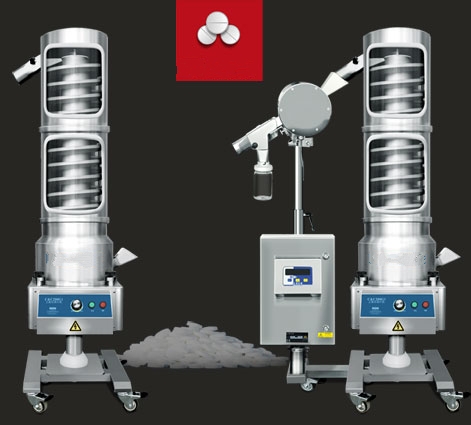

SP200 Uphill Deduster + Metal Detector
Introduction:
SP200 Uphill Tablet Deduster is new model with advanced structure. It has achieved double functions of tablet dedusting and elevating. Inlet of the machine can be connected with any model of tablet press, and outlet with metal detector, so that to realize the production line of tablet dedusting, elevating,and detecting.Designed with up-to- date concepts and adopting several advanced technologies, especially suitable for large quantities, large diameter tablets of dust removal and high transmission,the machine is equipped with following characteristics:
Features:
Body and cover of the machine take building-block design. Height of outlet is easy to adjust;
360° circle adjustment of inlet and outlet to make production more convenient and save factory room;
Fast-joint system to ensure safe and quick disassembly and assembly;
The machine working chamber and drive chamber are completely segregated with control chamber, avoided the dust pollute the vibration device and electric control system.
Outstanding efficiency can make mass production of ∮3-∮35mm all-kind-shape tab
Parts in contact with medicine all made of 316L stainless steel. No blind spot during whole machine cleaning. Meet GMP demands;
New design motor driver to make machine run more smoothly with lower noise.
Technical Parameters:
Model | SP200G | SP200G1 | SP200G2 | SP200G3 | ||
Tablet Diameter (mm) | Ø3-Ø35 | |||||
Max Output Capacity (t/h) | 1800000(Ø6) | |||||
Inlet height (mm) | 740-940 | 740-940 | 740-940 | 740-940 | ||
Outlet height (mm) | 1125-1325 | 1525-1725 | 1925-2125 | 2325-2525 | ||
Dedusting Distance (m) | 6.8 | 11.1 | 15.4 | 19.7 | ||
Power Supply | 1PH 220V/110V 50Hz/60Hz 0.4kw | |||||
Compression Air | 0.1 m3/min 0.05MPa | |||||
Vacuum | 2.7 m3/min -0.014MPa | |||||
Dimension (mm) | 577 x 606 x(1362-1562) | 577 x 606 x(1762-1962) | 577 x 606 x(2162-2362) | 577 x 606 x(2562-2762) | ||
Weight (kg) | 120 | 130 | 140 | 150 | ||
