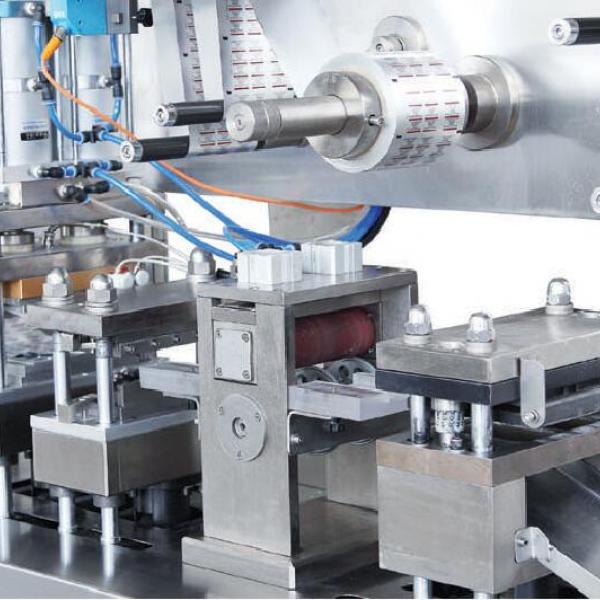

DPP-180H high-speed al-al blister packaging machine
DPP-180H high-speed al-al blister packaging machine, the machine is advantage at home and abroad for innovative plastic packaging machine design, machine key parts of the company a number of innovative technologies. Packaging for the pharmaceutical industry, tablets, dragees, capsules, also packaged food and small metal parts, electronic components. The machine set coil unwinding, aluminum feeding, blister forming, filling materials, waste recycling, plastic heat sealing, printing batch number, textured indentation, forum cutter display counting ten functions in one machine, packaging materials goods seal, safety and health.
Variable frequency stepless speed regulation, servo traction, adjust the stroke of a key in place.
The stroke can be adjusted within 40-120mm, which is easy to adjust with correct synchronization.
Adopts plate-type mould, positive-pressure forming, featured by batch number printing, creasing and cutting, aluminum-foil/plastics automatic feeding, automatic alarm for broken-piece and finished-piece and automatic stop etc.
Equipped with one set general feeder, which filling percentage reaches 99.5 and above. The feeder is fitted with dust exhaust joint so can overcome the dust problem duting feeding.
Adopts registering matching heating so that can reduce the heat energy loss of heater to the least, and the required temperature will be greatly reduced.
This machine has small volume, light weight, cramped structure, easy operation and maintenance.
Main Technical Parameters:
Al-Al 15-30 times/min
30-120mm (freely adjusted)
Max forming area
Max forming depth
25mm (or customized )
380V 50Hz, 3.8Kw
Air Volume flow
